Carbon Nanotube Dry Granulating Machine For Battery Material With Factory Price

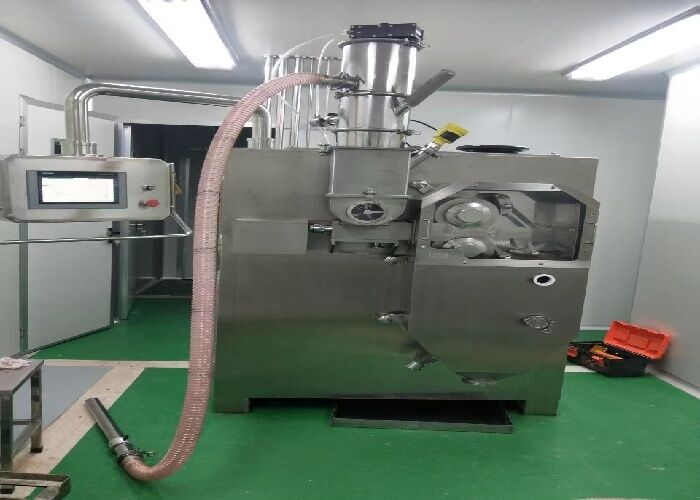

Carbon Nanotube Dry Granulating Machine For Battery Material
Roll Compaction involves feeding powder between two counter-rotating rolls, where it is pressed together to create a dense, compact ribbon which is then milled to achieve a uniform particle size.
By controlling the following parameters on the Roll Compactor it is possible to generate the ideal powder for your process needs:
Feed system design & speed
Roll dimensions – diameter & width
Roll speed, force & gap
Roll surface profile
Powder compact routing
Mill rotor design & velocity
Mill screen type & hole size
| Model |
LG100 |
LG100E |
LG160 |
LG200 |
LG240 |
LG360 |
|
Capacity
(kg/h)
|
1.5-15 |
12-40 |
50-150 |
100-240 |
160-320 |
360-720 |
|
Rated power
(kw)
|
3.47 |
3.53 |
7.24 |
11.37 |
15.94 |
32.55 |
| Roller size (D*W) |
100*25 |
100*40 |
160*50 |
200*75 |
240*100 |
360*150 |
For large production scale application, we provide double-supporting roller model
| Model |
LGS200 |
LGS240 |
LGS360 |
LGS500 |
|
Capacity
(kg/h)
|
200-400 |
300-640 |
1200-2000 |
1500-3000 |
|
Rated power
(kw)
|
|
|
|
|
| Roller size (D*W) |
|
|
|
|
Roller Compactor For Dry Granulation has the following features:
• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
Why Choose Us:
We are a leading Chinese manufacturer specializing in dry granulation equipment. With extensive experience in custom engineering solutions, we ensure that each machine meets your unique production requirements, improving efficiency and product quality.
Call-to-Action:
Contact us today to discuss your production needs and get a customized dry granulation solution!
